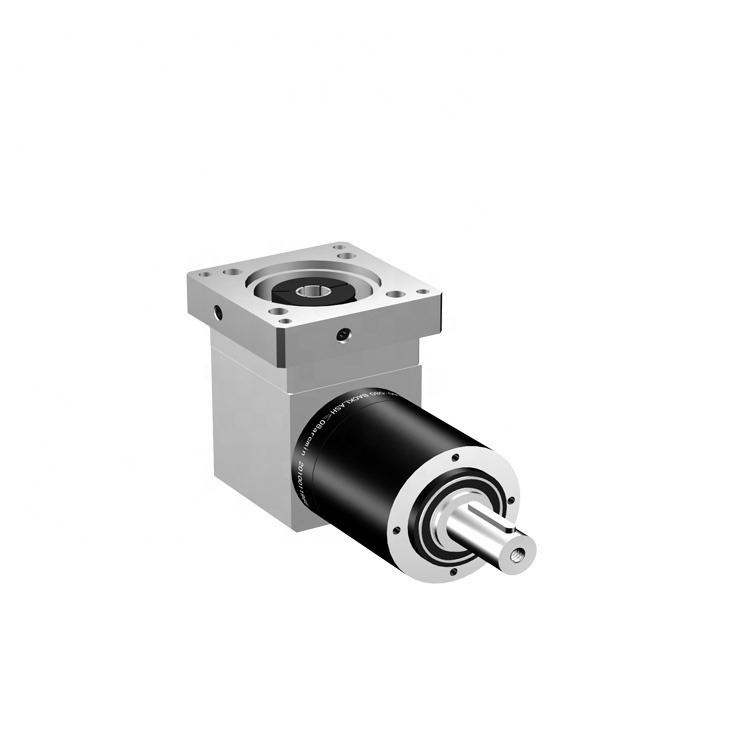

Precision Planetary Gear Boxes： |
1.Operation with decreased backlash (less than arc-minutes and ≤56 dB） |
2. The hoop clamping system provides seamless power transmission without assembly. |
3.100% concentration allows rotation and higher input speed capability. |
4.Bushing module system design: The unique motor adapter and bushing module system design allows for quick and easy mounting of any motor. |
5.Single piece structured ring gear with housing internal ring gear is machined directly into a single piece of steel. Maximized diameter and number of teeth to improve overall performance and torque capacity. |
Features： |
1. Integral double wall planet pinion carrier |
2.Bearing for the output shaft |
3.Planetary wheel |
4. Sun wheel |
5.Bearing for the input shaft |
6. Integral hoop clamp coupling |
7. Motor adaptor |
8.Back cover |
9. Integral inner gear housing |
10.Steel output flange |
Planetary Gearbox Frame Code： | PL、WPL、PF、 WPF |
Gearboxes Code： | 60、80、120、160 |
Ratio： | 1-stage：3, 4, 5, 8, 10 |
2-stage：9, 12, 15, 16, 20, 25, 32, 40, 64 | |
3-stage：60, 80, 100, 120, 160, 200, 256, 320, 512 | |
Backlash： | Precision、Standard |
Output shaft type： | Shaft without key、Shaft with key |
