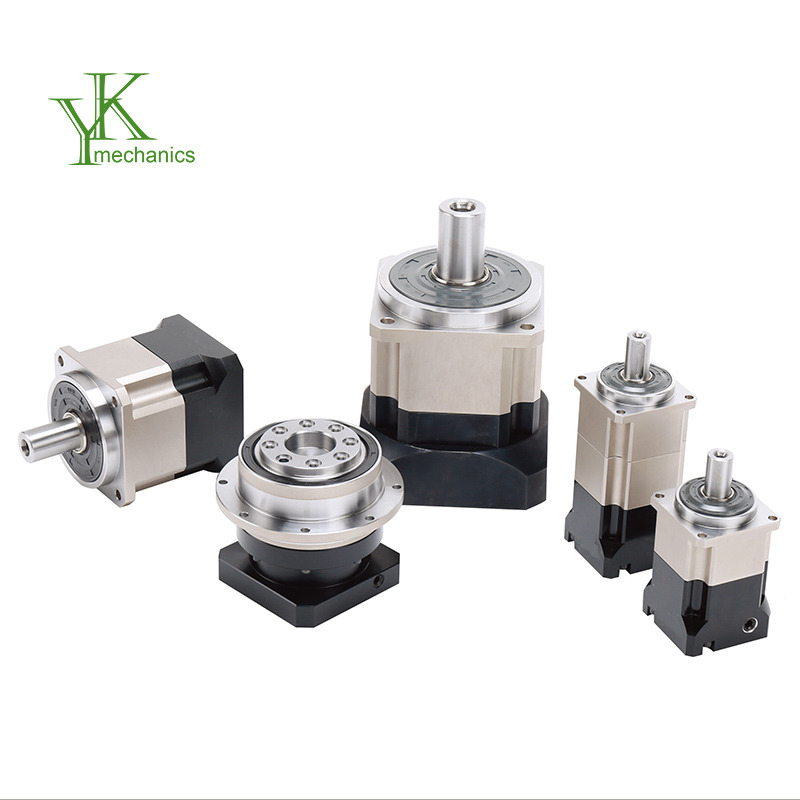

China factory screw jacks reducer gearbox planetary gear reducer
Technical Parameters of TF100
| Stage | Unit | One Stage | Two Stage |
| Ratio | i | 3, 4, 5, 6, 7, 8, 9, 10 | 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100 |
| Nominal Output Torque T 2N | Nm | 208, 290, 330, 310, 300, 260, 230, 230 | 208, 290, 330, 310, 300, 260, 230, 330, 310, 300, 260, 230, 230 |
| Emergency Stop Torque T 2NOT1 | Nm | 3 Times of Nominal Output Torque | 3 Times of Nominal Output Torque |
| Nominal Input Speed n 1N | rpm | 4000 | 4000 |
| Max Input Speed n 1B | rpm | 8000 | 8000 |
| Micro Backlash P0 | arcmin | ≤1 | ≤1 |
| Micro Backlash P1 | arcmin | ≤3 | ≤5 |
| Micro Backlash P2 | arcmin | ≤5 | ≤7 |
| Torsional Rigidity | Nm/arcmin | 25 | 25 |
| Max Radial Load F 2rB2 | N | 3350 | 1530 |
| Max Axial Load F 2aB2 | N | 765 | 3350 |
| Service Life 3 | hr | 20000(Continuously 10000) | 20000(Continuously 10000) |
| Efficiency η | % | ≥97% | ≥94% |
| Weight | kg | 7.8 | 9.0 |
| Operating Temp | °C | -10°C ~ +90°C | -10°C ~ +90°C |
| Lubrication | Synthetic Lubrication Oils | Synthetic Lubrication Oils | |
| Mounting Position | All direcstions | All direcstions | |
| Noise (n=3000rpm, i=10, No load) | dB(A) | ≤63 | ≤63 |
| Mass Moments of Inertia J1 | kg.cm2 | 3.25, 2.74, 2.71, 2.65, 2.62, 2.58, 2.57, 2.57 | 0.47, 0.47, 0.47, 0.47, 0.47, 0.47, 0.44, 0.44, 0.44, 0.44, 0.44, 0.44 |
Notes: 1. Max acceleration torque T=60% of T2NOT.
2. Applied to the output shaft center at 100rpm.
3. For continuous operation, the service life time is no less than 10,000hrs.
