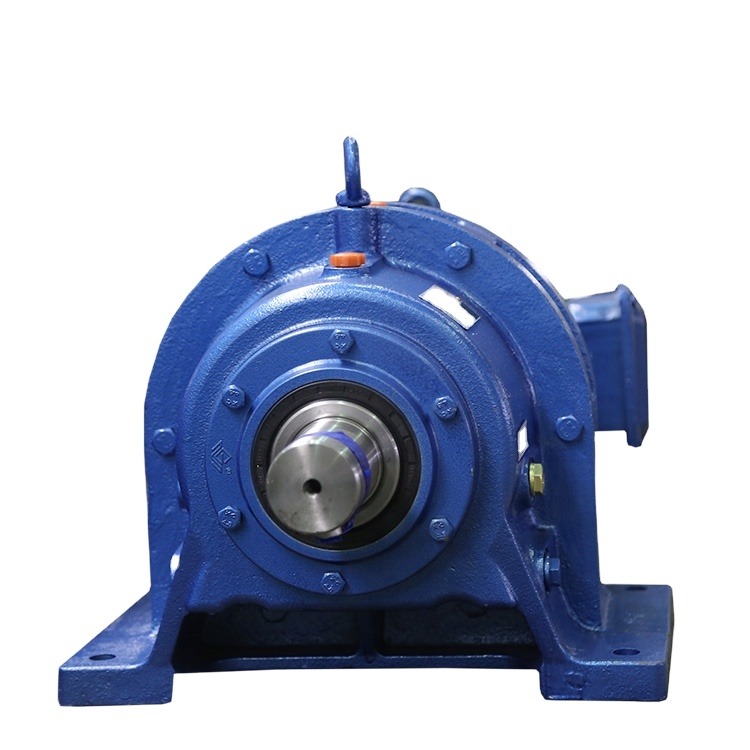

High Quality Hotels Speed ​​Reducer High Ratio Cycloidal Reducer China Guomao

1.0 Sets
MOQ
High Quality Hotels Speed ​​Reducer High Ratio Cycloidal Reducer China Guomao
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year, 1 Year
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction Works , Energy & Mining
Customized Support: OEM, ODM
Gearing Arrangement: Cycloidal
Output Torque: Top To 36000N.m
Input Speed: 600-1500r/min
Output Speed: 0.011-161r/min
Mounting Position: Horizontal (foot Mounted) Or Vertical (flange Mounted)
QUALITY Control System: ISO9001:2008
Color: Red, Blue, Green, Gray, White
Gear Material: Low Carbon High Alloy Steel
Gear Accuracy: Less Than 6
Certificate: CCC, CQM, Supplier Assessment,MA
Heat Treatment: Quenching/Carburising/Gear Grinding
Material: Steel Or Cast Iron
Product Name: Guomao Gear Speed Reducer High Ratio Speed Cycloidal Reducer
Basic Infomation
Certification: CCC, CQM, Supplier Assessment,MA
Payment & Shipping Terms
Product Description
Product Description
Guomao gear speed reducer high ratio speed cycloidal reducer for Electric Motor

Main Features

1. High speed ratio and high efficiency
Single-stage transmission can achieve a reduction ratio of 1:87, and the efficiency is above 90%. If multi-stage transmission is adopted, the reduction ratio is larger.
2. Compact and small size
Adopting the principle of planetary transmission, the input shaft and the output shaft are on the same axis, which is compact and small in size.
3. Easy to assemble and disassemble, easy to repair
Reasonable structure design, easy assembly and disassembly, easy maintenance.
4. Smooth operation and low noise
The cycloidal pin teeth have a large number of meshing teeth, a large overlap coefficient and a mechanism for smoothing the machine, so that vibration and noise are controlled to a minimum.
5. Reliable use and long life
The main transmission meshing parts are made of bearing steel, with good mechanical properties, smooth rolling friction, and long life and durability.
6. Strong overload capability, impact resistance, low moment of inertia
Suitable for occasions with frequent start and reverse rotation.

Internal Structure
1. Output shaft 2. Output shft dead ring 3. Small cover 4. Engine frame 5. Pin shaft pin sets 6. Cycloidal wheel 7. Eccentric bearing 8. Spacer ring 9. Needle teeth pin tooth set 10. Pin wheel housing 11. Big end cover 12. Wind shield 13. Input shaft
Installing form
When installed at the ground level, M1 is the default installation type. For flange mounting, the M4 is the default mounting style.
Factory and company
GUOMAO REDUCER has the complete of reducers with about ten series of hundred varieties, including B, X serial cycloidal reducer, Z serial cylindrical gear reducer, ZLYJ serial gear reducer specially for plastic extruding machine,DCY serial bevel and cylindrical worm geared motor, GK serial helical bevel geared motor, GF serial parallel helical geared motor, PV serial helical gear units, etc.
Packing and service
We have set a customer service center consist of 80 engineers specializing for worldwide oversea service for installation, commission, maintenance and after-sale service to our clients .More spare parts given to clients for free to ensure the factory working without suddenly stop.Professional after-sale service and Lifetime Technical Service, reply you in 12 hours.
Certifications
The company has obtained Certificate of Conformity of Quality System Cerfication and the International Certification Network(IQNET) which is approbatory by about 28 countries in European area.
FAQ
1. How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide the technical information of required output torque, output speed and motor parameter etc.

2. What information shall we give before plcing a purchase order?
a) Type of the gearbox, ratio, input and output speed, mounting position, and motor information etc.
b) Purchase quantity.
c) Other special requirements.

3. What's the MOQ and payment?
MOQ is 1 unit.
T/T and L/C accepted. And other terms can also be negotiated.

4. What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry, escalator, automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.

If you have any question, please feel free to contact us.
